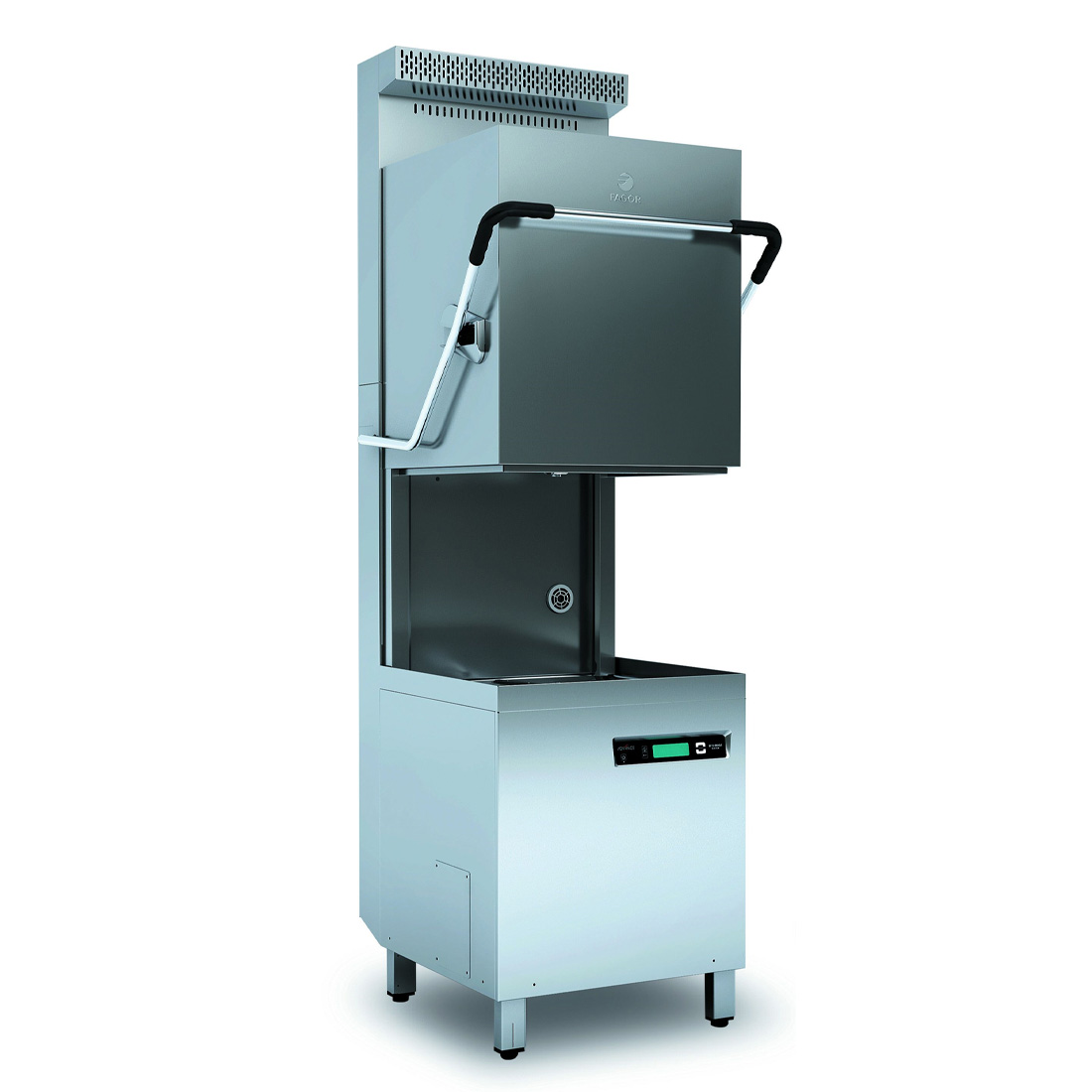

Ex-Showroom: FAGOR EVO-ADVANCE Pass-through Dishwasher AD-125HRS-QLD3

Ex-Showroom: FAGOR EVO-ADVANCE Pass-through Dishwasher AD-125HRS-QLD3

?

Lot Number: QLD3
Class: 1
Conditions: Minor relocations marks
Warranty: 12 Months

?

For those who believe that technology and simplicity can go hand-in-hand, the E-VO CONCEPT has arrived.

?

With built in Heat Recovery System and energy recuperator! The Heat Recovery System collects and condenses the steam during each cycle & is exhausted by the machine after a full cleaning cycle. It heats up the next cycle᯳ input water making it more energy efficient & with lower energy bills. It also eliminates the need of a ceiling exhaust canopy.

?

Key Features:

• Fagor EVO-ADVANCE pass-through dishwasher with Heat Recovery System
• Includes built-in drain pump, detergent and rinse dispenser
• HIGH TECHNOLOGY WITHIN EVERYONE'S REACH
• Hood type dishwasher - EVO Generation - Advance range
• GLASS cycle: special program for washing glassware, based on the specifications of hygiene and safety standard DIN 10511
• HRS: version with energy recuperator. HRS collects and condenses the steam exhausted by the machine after a full cleaning cycle, and heats up the input water.
• Made of stainless steel. Includes double skin
• insulated hood, external, front and side panels
• Full double skin body and hood to isolate machine᯳ noise from the environment.
• Counterbalanced hood.
• Double rotating wash and rinse systems made of stainless steel, above and below.
• Tray filters on the tank, made of AISI-304 stainless steel
• Two wash pumps, 600 W each
• Rinsing pump: 260 W. Air break system
• Drain pump: 70 W. Drainage cycle
• Tank with 1.8 kW heating element
• Tank capacity: 28 litres
• Boiler with multipower heating elements: 3 / 4,5 / 6 / 9 kW
• Thermostatic temperature control: washing at 60oC and rinsing at 90oC
• Thermo stop system that guarantees minimum rinsing temperature of 85oC
• Safety thermostats
• Built-in automatic rinse dispenser and detergent doser
• Safety magnetic switch for hood opening
• Adjustable legs

?

Additional Information:

• Cycle of 90 seconds, with temperatures: 60 ᣃ (wash) and 65 oC (rinse)
• Boiler capacity: 9 litres
• Water consumption: 2.4 litres/rinse
• Water protection rating: IPX5
• Total power: adjustable: 4,2 Ⴀ12,0 kW
• Dimensions: 658 x 756 x 1540 mm
• Height with HRS recuperator: 2.200 mm
• Baskets equipment: 1 x CT-10, 1 x CP-16/18 and 8 cutlery containers
• Hourly production: 65 baskets/hour - 1170 dishes/hour
• Clearance (max ware height): 440 mm
• Wash cycles: 55"- 90" - 120"
• Power: 30 W
