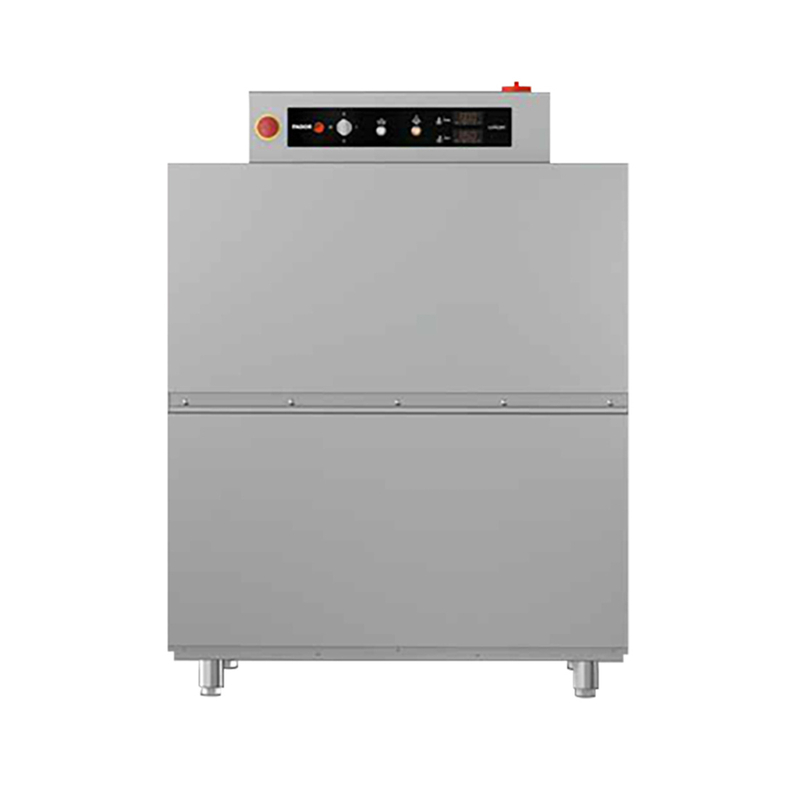

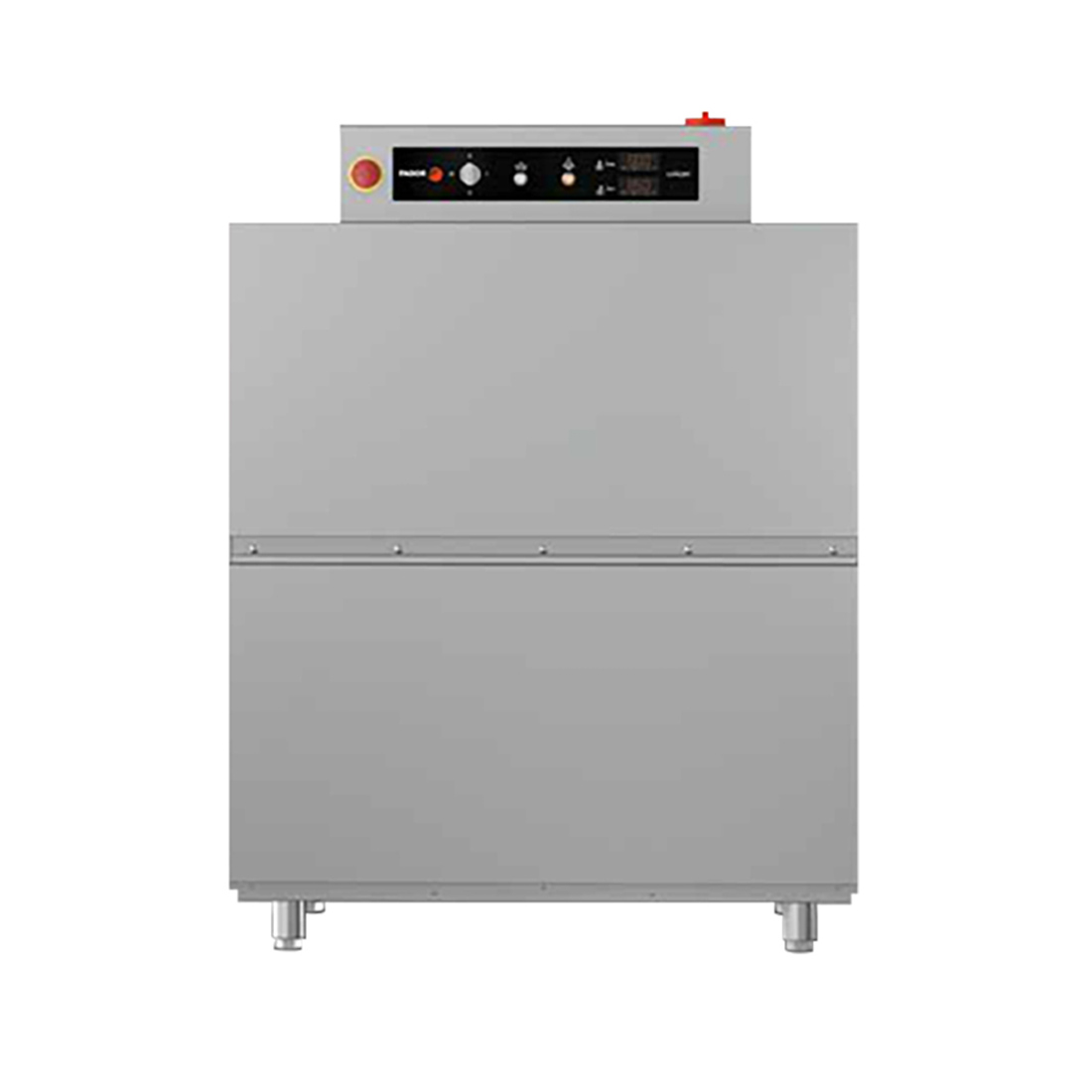

Electric Conveyor Dishwasher Left Entrance - CCO-120ICW
?
?
Key Features
- All the main parts are manufactured in AISI-304 anti-corrosion stainless steel: tanks, washing and rinsing arms, jets, doors, basket conveyance system, boiler, and metal tubes.
- Upwards-opening double panel door.
- Tank tray filters made of AISI-304 stainless steel, easy to access and remove for cleaning and access to the tank.
- Safety filter for pump suction.
- Rinsing boiler with heat insulation.
- Easy access for installation. Electrovalve is located on one side (no need to remove panels to connect the machine).
- Electrical panel designed for easy connection of doses for liquid and solid detergents, rinse aid, limit switches, and supplementary emergency stop button.
- Washing arms easily removable as a set, for cleaning, with a plug on each branch providing access for cleaning inside.
- Rinse jets are easily dismountable and removable.
- System of electronic regulation of speeds using frequency shifter.
- Configurable electronic temperature control:
- Wash (50 - 65 ��C)
- Rinse (70 - 85 ��C) - Guarantor of rinse at 85 ��C.
- Pressure regulator for flow control.
- Emergency stop button incorporated.
- Extra anti-entrapment protection system at the entrance, mounted on the AS-260 splash guard supplement (optional).
- Open door blocking system.
- IPX4 protection system.
- System for detection of blockage of conveyor carriage and automatic reverse function.
- High-power washing system with 4 upper and 4 lower washing branches.
- 3 washing programs: deep, medium, and high capacity.
- Double effect rinse.
- Energy-saving system: reduces consumption by halting the operation of the pumps, and bypassing the heating of the rinse to standby mode (70 ��C).
- Auto-timer which deactivates the conveyor motor after a pre-set period of inactivity (10 minutes).
- Energy saving system in the wash: the wash does not start up until it
detects the passage of the basket. - Rinse saving system. The rinse stops when the basket has left, saving water and energy.
- Model prepared for the entrance of baskets from the left side.
- Model prepared for a cold water connection inlet (Inlet temperature < 50oC)
- Equipment included:
2 base baskets, CT-10
2 baskets for plates CP-16/18, 1 basket for
glasses CV-16/105, 1 basket for cutlery CT-10 R
Limit switch included.
?
?
2 Years Parts and Labour Warranty
